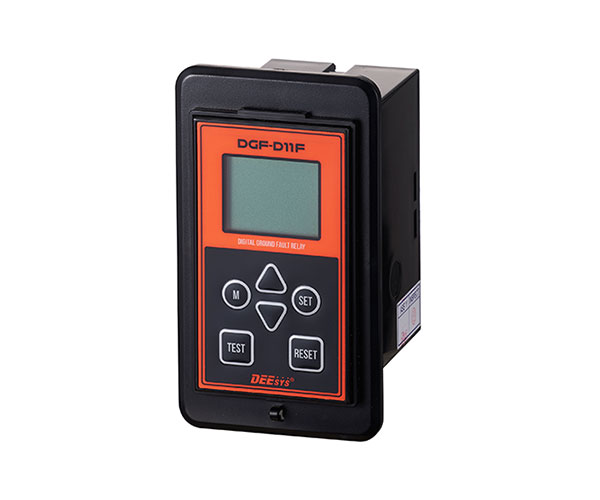

DGF-D11F
Deesys GFR (Ground Fault Relay)
สอบถามสต็อก
รีเลย์ตรวจจับไฟรั่ว/กราวด์ฟอลต์แบบดิจิทัล ใช้คู่กับ ZCT อินพุต 200mA/100mV (รุ่นลงท้าย A = 200mA/1.5mA) ไฟเลี้ยง Free Volt AC/DC 100–240V หน้าสัมผัส 1a AC250V 10A / DC30V 10A ตั้งกระแส 0.1–10.0A เวลา INST–5.00 วินาที มีหน่วยความจำบันทึกค่ากระแสตอนเกิดฟอลต์ รุ่นลงท้าย -C มีพอร์ต RS-485 Modbus | ทรงตั้ง D11F = ฝังหน้าตู้, D11P = แบบเสียบซ็อกเก็ต, ทรงนอน D11H สำหรับตู้ MCC — ⚠ ผู้ผลิตระบุใช้กับวงจรแรงดันต่ำกว่า 600V ให้ใช้คู่กับ ZCT แรงต่ำ DZR / DZS / SZR ไม่ใช่ ZCT แรงสูง HZR (6,600/3,300V) ซึ่งระบุให้ใช้รีเลย์ HGR/DGR
ดาวน์โหลดเอกสารDOWNLOADMain Feature
- ▪ The ground fault (leakage) status of the electric line is alarmed and displayed for each circuit, and the ground fault current in the event of a ground fault is displayed on the LCD display
- ▪ It stores the ground fault current value at the time of an accident and can be used as data for condition analysis after a fault
- ▪ Built-in communication port enables remote monitoring (optional function)
- ▪ Provides convenient HMI through key interface
- ▪ Malfunction can be prevented against harmonic components and various noises
Voltage class
- ▪ Deesys specifies this relay for protecting ground faults on circuits below 600 V
- ▪ Pair with the low-voltage Deesys ZCTs: DZR (round cable-through), DZS (square busbar-through) or SZR
- ▪ Not the relay for the high-voltage HZR ZCT (6,600 / 3,300 V), whose catalog specifies HGR / DGR relays
Technical Specification
| Rating | ||
| Rated input | ZCT input AC 200 mA / 100 mV — models with an A suffix are AC 200 mA / 1.5 mA | |
| Display | LCD display | |
| Frequency | 60 Hz / 50 Hz | |
| Control power | AC/DC 100 V ~ 240 V (free volt) | |
| Consumption | standby less than 5 W, run less than 7 W | |
| Output contact | 1a contact (AC 250 V 10 A, DC 30 V 10 A) | |
| Communication | RS-485 Modbus — on the -C models only | |
| Applicable standard | KS C 8328 | |
| Operation current | ||
| Current TAP | LOCK, 0.1 ~ 10.0 A [0.1 A step] | |
| Metering range | 0.01 ~ 12.5 A [abnormal current input shows OvC (over current)] | |
| Operation range | within 75~100% of each correction value | |
| Operation time and return | ||
| Operating characteristic | definite time | |
| Op. lever | INST ~ 5.00 sec [0.1 sec step] | |
| Accuracy | INST ~ 0.20 sec within ±40 ms / 0.20 ~ 5.00 sec within ±10% | |
| Return current | firmly returns at 90% of each correction value | |
| Return time | INST / 0.1 ~ 30.0 sec (under 1 sec : 0.1 sec step, over 1 sec : 1 sec step) | |
| Return method | auto (return time applied) / manual | |
| Fault memory and HMI | ||
| Fault memory | when a fault current occurs the fault current value is displayed on the LCD; the latest fault current can be read back with the fault current check function | |
| Fault recovery | LCD backlight and output contact [auto return setting possible] | |
| Keypad | M (menu), ▲, ▼, SET, TEST, RESET | |
| LCD backlight | off = RUN, green = normal, red = alarm | |
| Model lineup — vertical type (general MCC panel) | ||
| DGF-D11F | flush mounted, ZCT input AC 200 mA / 100 mV | |
| DGF-D11F-C | flush mounted, AC 200 mA / 100 mV, RS-485 Modbus | |
| DGF-D11FA | flush mounted, ZCT input AC 200 mA / 1.5 mA | |
| DGF-D11FA-C | flush mounted, AC 200 mA / 1.5 mA, RS-485 Modbus | |
| DGF-D11P | socket type, ZCT input AC 200 mA / 100 mV | |
| DGF-D11P-C | socket type, AC 200 mA / 100 mV, RS-485 Modbus | |
| DGF-D11PA | socket type, ZCT input AC 200 mA / 1.5 mA | |
| DGF-D11PA-C | socket type, AC 200 mA / 1.5 mA, RS-485 Modbus | |
| Model lineup — horizontal type (smart distribution board MCC panel) | ||
| DGF-D11H-F / DGF-D11H-F-C | flush mounted, ZCT input AC 200 mA / 100 mV (-C adds RS-485 Modbus) | |
| DGF-D11H-FA / DGF-D11H-FA-C | flush mounted, ZCT input AC 200 mA / 1.5 mA (-C adds RS-485 Modbus) | |
| DGF-D11H-P / DGF-D11H-P-C | socket type, ZCT input AC 200 mA / 100 mV (-C adds RS-485 Modbus) | |
| DGF-D11H-PA / DGF-D11H-PA-C | socket type, ZCT input AC 200 mA / 1.5 mA (-C adds RS-485 Modbus) | |
| The general rating specifications of the horizontal and vertical types are the same | ||
| Dimensions and wiring | ||
| The external dimensions of the vertical and horizontal types are the same | ||
| Flush mounted type | panel cut-out 56 × 94 mm, front frame 70 × 124 mm | |
| Flush type terminals | 1 Pp, 2 Pn (control power) · 3 Ta, 4 Tc (output contact) · 7 Z1, 8 Z2 (to ZCT) | |
| Socket type | 8-pin socket — ① Pp ② Pn ③ Ta ④ Tc ⑤ 485+ ⑥ 485- ⑦ Z1 ⑧ Z2 | |
| Terminal numbering of the vertical and horizontal types is the same | ||
| Control power is taken from R S T N through a line filter — install the line filter when there are many harmonic components in the power line | ||
ข้อมูลตามเอกสารผู้ผลิต (Deesys) — รายละเอียดฉบับเต็มดูจาก Datasheet ด้านล่าง
