ภาพสินค้าจริง

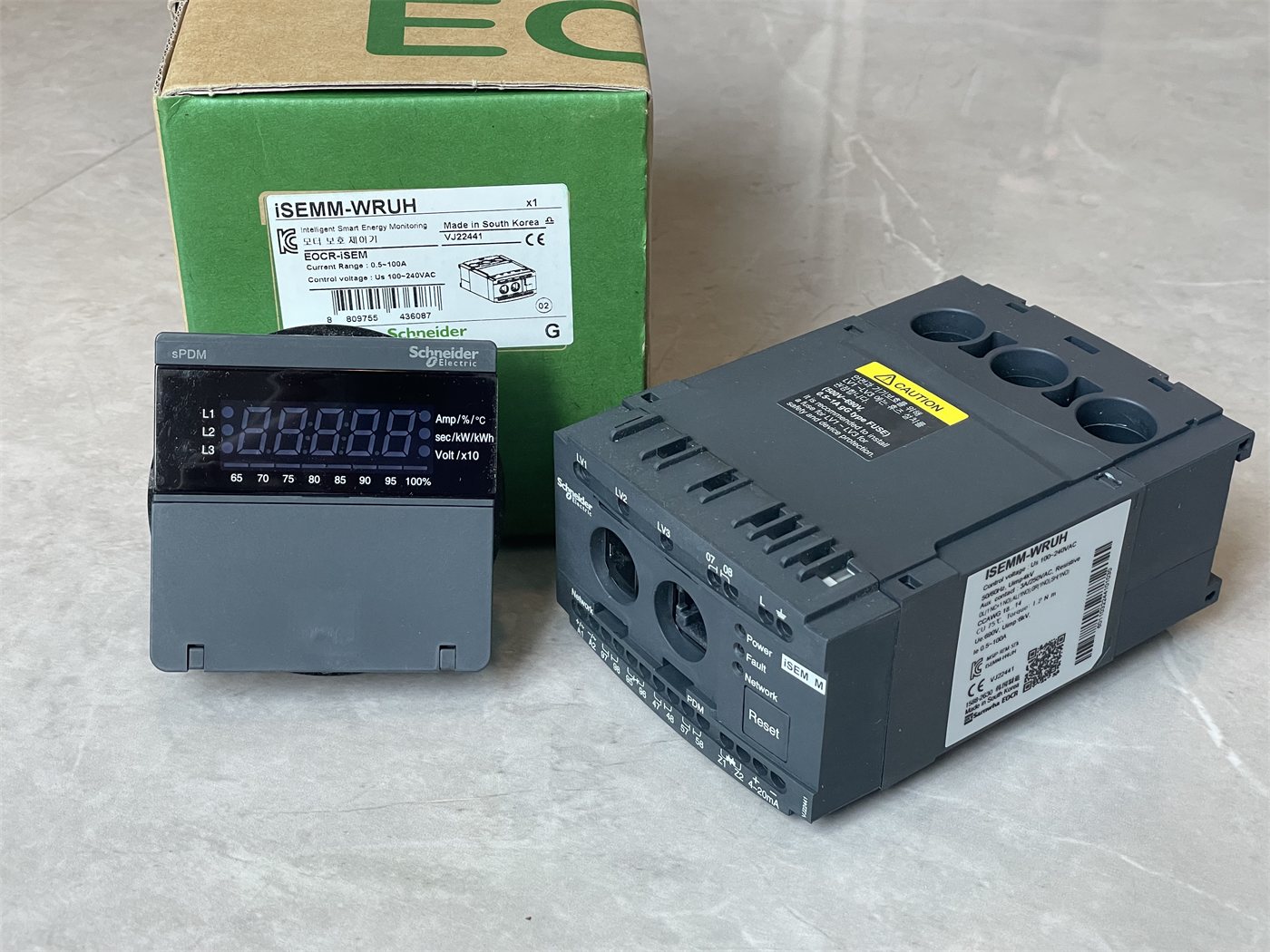

ภาพถ่ายจริงจากสต็อก SAV — พร้อมกล่องและจอแสดงผล sPDM คลิกเพื่อดูภาพเต็มและอ่านป้ายพิกัด
Schneider EOCR
ISEMM-WRUH
iSEM (Communication)
● มีสต็อกในไทย

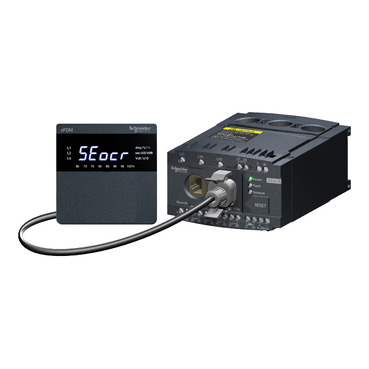

พร้อมส่ง — EOCR-iSEM รุ่น iSEMM วัดทั้งกระแส แรงดัน และกำลังไฟฟ้า ตั้งกระแส 0.5–100A (เส้นโค้ง inverse/thermal 0.5–60A) ระบบ 3 เฟส 110–690V ไฟเลี้ยง 100–240VAC สื่อสาร Modbus-RTU RS-485 และมีเอาต์พุต 4–20mA | ตัวเครื่องติดหลังตู้ ใช้คู่กับจอ sPDM ขนาด 72×72 มม. (ในภาพมีจอมาด้วย) | ⚠ แนะนำให้ใส่ฟิวส์ gG 0.5–1A (500–690V) ที่ขา LV1–LV3 ตามคำเตือนบนตัวเครื่อง
ดาวน์โหลดเอกสารDOWNLOADMain Feature
- ▪ Measures and displays current, voltage, earth-fault current, active/reactive power, energy, operating time, total operating time and power factor
- ▪ Fault-cause display, plus a fault wave record sampling 3-phase current and voltage at 1 ms for 200 ms around a trip (readable over communication)
- ▪ Total operating-time counter that the user cannot reset — only cleared in the factory
- ▪ Date and time stamping of faults, so a motor failure can be placed exactly
- ▪ Restart limit caps reset attempts within 30 minutes when auto reset is enabled
- ▪ Self test runs watchdog and RAM checks while the motor is not drawing current
- ▪ Communication watchdog raises an alert if the PLC/DCS stops polling for a user-set 1–999 s
Technical Specification
| Nameplate (photographed from SAV stock) | ||
| Model | ISEMM-WRUH | |
| Control voltage | Us 100–240 VAC, 50/60 Hz, Uimp 4 kV | |
| Ie | 0.5–100 A | |
| Ue | 690 V, Uimp 6 kV | |
| Aux. contact | 3 A / 250 VAC resistive — OL (1NC+1NO), AL (1NO), GR (1NO), SP (1NO) | |
| Wiring | CCAWG 18–14, Cu 75 °C, terminal torque 1.2 N·m | |
| Caution (on unit) | for LV1–LV3 a 500–690 V, 0.5–1 A gG type fuse is recommended for safety and device protection | |
| Marks | KC, CE — Made in South Korea, Samwha EOCR / Schneider Electric | |
| Box | EOCR-iSEM, Intelligent Smart Energy Monitoring, current range 0.5–100 A, Us 100–240 VAC | |
| Current protection settings | ||
| Over current setting range (oc) | definite 0.5–100 A; inverse / thermal inverse 0.5–60 A | |
| Under current setting range (uc) | 0.5 A up to the oc setting, or off | |
| Overload characteristic curve (tcc) | definite (Def) / inverse (Inv) / thermal inverse (th) | |
| Short-circuit current setting (SH) | 2–50 × (settable while oc × SH ≤ 500 A) | |
| Stall (Sc) | 2–8 × (settable while oc × Sc ≤ 500 A) | |
| Jam (JA) | 1.5–8 × (settable while oc × JA ≤ 500 A) | |
| Current operation times | ||
| Start delay time (dt) | 0–600 s | |
| Over current operation time (definite, ot) | 0.2–120 s | |
| Over current characteristic curve (inverse, cls) | class 1–30 | |
| Under current operation time (definite, ut) | 0.5–120 s | |
| Earth-fault current operation time (Et) | 0.05–10 s external, 0.1–10 s internal | |
| Earth-fault delay at start-up (Edt) | 0–30 s | |
| Short-circuit operation time | within 0.05 s; delay at start-up (Sdt) 0–20 s | |
| Jam operation time (Jt) | 0.2–10 s | |
| Phase loss operation time (Plt) | 0.5–5 s | |
| Unbalance operation time (Cut) | 1–10 s | |
| Reverse phase operation time | within 0.15 s | |
| Auto reset time | 0.5 s – 20 min | |
| Reset type | manual (H-r) / remote (E-r) / auto (A-r) | |
| Voltage, power and power-factor protection | ||
| Over voltage setting (ov) | 101–115% of a nominal 110–690 V; operation time (ovt) 0.2–30 s | |
| Under voltage setting (uv) | 70–99% of a nominal 110–690 V; operation time (uvt) 0.2–30 s | |
| Voltage phase loss operation time (Vlt) | 0.1–30 s | |
| Voltage unbalance operation time (Vut) | 0.2–20 s | |
| Voltage reverse phase operation time | within 0.15 s | |
| Overpower setting (op) | 20–800% of a nominal 0.1–999 kW; operation time (opt) 1–100 s | |
| Low power setting (up) | 20–800% of a nominal 0.1–999 kW; operation time (upt) 1–30 s | |
| Overpower factor (of) | 1–100, operation time (oft) 2–30 s | |
| Underpower factor (uf) | 1–100, operation time (uft) 1–30 s | |
| Ratings, display and communication | ||
| Control power | 100–240 VAC / 24 VDC, 50/60 Hz, 8 VA or less | |
| System voltage | 3-phase AC 110–690 V, 50/60 Hz | |
| Output contact capacity | 3 A / 250 VAC resistive | |
| Output configuration | over current 1a1b, earth fault 1a, short circuit 1a, alert 1a | |
| Display | 7-segment LED, plus a bar graph showing 65–100% load factor | |
| Communication | Modbus-RTU over RS-485, 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 kbps, max 1.2 km, shielded twisted 2-pair cable | |
| Current loop | converts the maximum of the 3-phase currents to 4–20 mA | |
| Mounting | embedded panel (flush mounting) | |
| Insulation, EMC and environment | ||
| Insulation resistance | DC 500 V, 10 MΩ or higher between circuit and case | |
| Withstand voltage | 2 kV between circuit and case, 1 kV between contacts, 2 kV between circuits, 50/60 Hz for 1 min | |
| ESD (IEC 61000-4-2 / IEC 60255-22-2) | level 3, air ±8 kV, contact ±6 kV | |
| Radiated disturbance (IEC 61000-4-3 / IEC 60255-22-3) | level 3, 10 V/m, 80–1000 MHz | |
| Conducted disturbance (IEC 61000-4-6 / IEC 60255-22-6) | level 3, 10 V, 0.15–80 MHz | |
| EFT/burst (IEC 61000-4-4 / IEC 60255-22-4) | level 3, ±2 kV, 1 min | |
| Surge (IEC 61000-4-5 / IEC 60255-22-5) | level 3, 1.2 × 50 µs, ±4 kV | |
| Emission (CISPR 11 / IEC 60255-22-26) | class A, conducted and radiated | |
| Temperature | storage -40 … +85 °C, operation -20 … +60 °C | |
| Humidity | 30–85% RH, no condensation | |
| Dimensions and weight | ||
| Main body | 90.3 W × 52.1 H × 108.1 D mm | |
| Display sPDM | 72 W × 72 H × 28.1 D mm | |
| Weight | iSEMM 454 g (iSEMD 422 g, iSEMZ 450 g); sPDM 125 g; 1 m cable 55 g | |
ข้อมูลตามเอกสารผู้ผลิต (Schneider EOCR) — รายละเอียดฉบับเต็มดูจาก Datasheet ด้านล่าง
