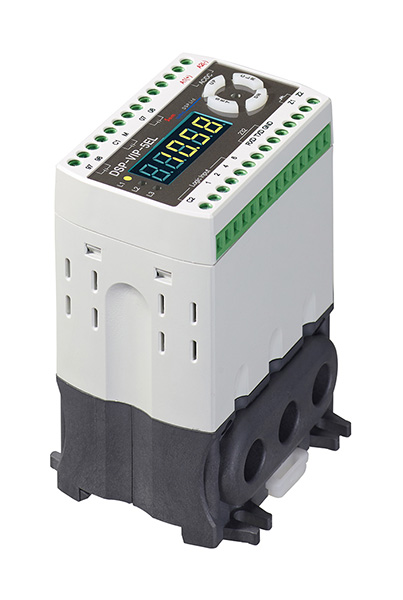

DSP-VIP-5TL-70Z7
DSP-VIP-5-Series(5EM/5EL,5TM/5TL,5CM/5CL,5SM)
● มีสต็อกในไทย
ดาวน์โหลดเอกสารDOWNLOADMain Feature
- ▪ Panel Mounting Type
- ▪ Access restricted to authorized operator : Password
- ▪ To response for various motor starting system and to use trip for the protection : the application for trip output according to Logic input as follows : applied mode is "out/LooFF/a/b"
- – Trip output : C1-M, 97-98/Main trip, 07-08/Aux
- – As the control power is powered :
- – for selecting LooFF(“Auto" is displayed in the initial state)
- – disable for logic input
- – C1-M:open⇢close in motor start/(open in trip)
- – sequence for contactor ON-OFF ⇢ C1-M(b),97-98(a)/actually just like 1b-1a
- – for selecting one of a / b("LOP", rcs. EFI are displayed in the initial state according to logic input state)
- – C1-M:open ⇢ close in motor start
- – sequence wiring for contator ON-OFF⇢C1-M(1b)
- ▪ Protection : Over current/Under current/Phase loss/Reverse phase/Locked rotor/Shock(Stall)/Ground fault,[Short circuit:5SM Type]
- ▪ Indication :Current(each phase line or average),earth current, load factor,accumulated working time[AWT]
- ▪ Current loop communication :4~20mA for max value of 3 phase current
- ▪ To cover a wide and precised current range for the protection
- – 03 Type :0.2 ∼ 6A - only available for 5SM Type
- – 70 Type : 0.2A∼70A --changed naturally into 0.2~6A with external CT if 5A is preset in cto mode or for 5SM type
- – Extended current range with external CT : 1A∼3000A
- ▪ To keep a steady characteristics in the noisy installed environment : embedded RMS chip/correct RMS current value
- ▪ The classification for Logic Input :LOP>> rcs >> EFI(External Fault Input)/LOP:#1,#2, rCS:#4,#6:EFI
- ▪ To realize instant trip time for the ground fault protection :0.1∼30sec/Definite , 0.05sec/instant
- ▪ To realize instant trip time for the short circuit protection : 0.08 sec/instant T-I for 5SM Type
- ▪ "Shock" protection :availble for instant mechanical shock due to over load while crasher,roller,conveyer,etc are working
- ▪ To indicate a necessasary information in every 3 sec
- ▪ Convenient installation of ZCT to sense a zero phase current for GF protection
- – Standard type : to use external ZCT(200mA/1.5mA)
- – Optional type : embedded ZCT(not available for external CT application)
- ▪ High sensitive level and wide range for ground fault protection : 30mA ∼ 4A
- ▪ Main contactor auto close : in case a line power is "ON" again withinin a preset time(SDDT) after a line power is "OFF" during normal operation, main contactor is closed orderly according to another preset time(DOMT)
- ▪ Various way to reset after trip: Manual,Electrical or Automatic /to response flexibly for applied sequence system
- ▪ Self-diagonostic test by one touch for "CLR" key
- ▪ Alarm befor Tripping by over current
- ▪ History,Latest 8 trip events
- ▪ To have stable state under the noise environment :connection cable with line noise filter between indication meter and converter
- ▪ Convenient installation into existed meter hole:65Φ hole or rectangular hole
Easy Handling
- ▪ Current rating
- – 70 Type : 0.2A∼70A / 0.5A~6A with external CT
- – 03 Type : 0.2A ∼6A, Only for 5SM Type
- – External CT : 1A ∼ 3000A
- ▪ Operation Time
- – Starting trip delay time(dt) : 1 ~ 300sec /Definite T-I
- – definite T-I:0.1~60sec
- – Inverse :5~30 Class
- – 0.08 sec/instant(5SM Type)
- – Under current trip delay time : 0.1~30sec
- – Phase loss trip delay time(PLc) : 1~5sec
- – Reverse phase trip delay time : within 0.5sec
- – Ground fault trip delay time : Edt/0.1~25sec,Eot/0.05,0.1~30sec
- – current unbalance trip delay time : 8sec
- – locked rotor trip delay time : dt+0.1sec
- ▪ Allowable tollerance
- – Current : C≤2A : 0.2A, C>2A : ±5%
- – Time : t≤2sec : ±0.2sec, t>2sec : ±10%
- – Control power : 24VDC (Optional Type)
- ▪ Trip output
- – Main : 97-98 : 1a(1-SPST),3A/Resistive
- – C1-M : 1a (1-SPST),3A/Resistive
- – Aux:07-08 : 1a(1-SPST),3A/Resistive(possible to output one of,AlEc/AL/uc/Shoc/Ec-ta/Ec-tb or SS(5SM type)
- ▪ Application environment
- – Operation : -25℃ ~ +70℃
- – Storage : -40℃ ~ +80℃
- – Relative humidity : 30∼85%, non-condensing
- ▪ Stable operation under frequency variation from Inverter : 20Hz ∼ 400Hz ,avg ±5%
- ▪ Screw Torque : Max 0.6N.m
- ▪ Insulation Resistence / IEC-60255-5 : circuit-case, 10Mohm , 500VDC
- ▪ High Voltage Withstand Test : IEC-60255-5
- – circuit-case : AC2000V, 60Hz, 1min
- – contact-contact : AC1000V, 60Hz, 1min
- ▪ Lightning Impulse Voltage Withstand Test : IEC-60255-5
- – Circuit-Ground, Circuit-Circuit : 1.2/50uS, 5KV
- – Control Circuits : 1.2/50uS, 5KV
- ▪ 1MHz Burst Immunity Test / IEC 61000-4-18 : 2.5KV, Positive / Negative under 2sec
- ▪ Electrostatic Discharge : IEC-61000-4-2
- – Air : Level 3, 8KV
- – Contact : Level 13, 6KV
- ▪ Radiated Electromagnetic Field Disturbance / IEC-61000-4-3 : Level 3, 10V/m
- ▪ Electric Fast Transient Burst : IEC-61000-4-4
- – power,relay output : Level 4, 4KV
- ▪ Surge Immunity test : IEC-61000-4-5
- – relay output : 1.2×50uS, 2KV(0°, 90°, 180°, 270°)
- ▪ Conducted Disturbence Test / IEC-61000-4-6 : 10V, Level 3
- ▪ Control Voltage : AC 85V ∼ AC260V,50/60Hz (DC90V ∼ DC370V)
- ▪ Power consumption : 6W Max
